THẺ ĐIỀU KHIỂN CON LĂN ĐIỆN PHÂN KHÚC SIÊU MỎNG ĐA LOGIC ITOH DENKI CBL-402F2

TỔNG QUAN CHI TIẾT CHUYÊN SÂU SẢN PHẨM

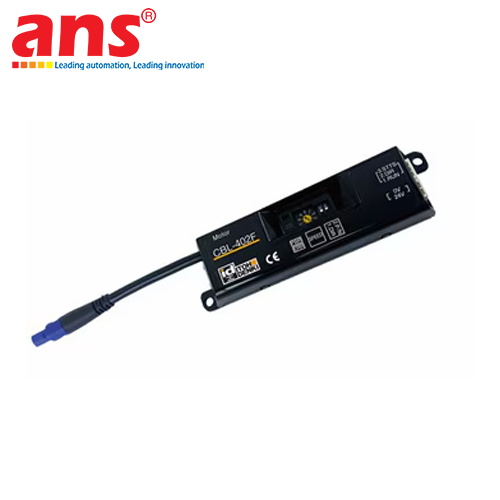

Itoh Denki CBL-402F2 là dòng thiết bị bo mạch điều khiển kỹ thuật số trung tâm chuyên dụng (MDR Driver Card / Control Board) phân khúc thiết kế siêu mỏng (Ultra-compact), được nghiên cứu, phát triển và chế tạo nguyên khối 100% tại Nhật Bản bởi tập đoàn công nghệ tự động hóa kho vận hàng đầu thế giới Itoh Denki. Thiết bị là phiên bản nâng cấp tối ưu hóa vượt trội từ dòng CBL-402F kinh điển, đóng vai trò là "bộ não" điều khiển cục bộ được thiết kế để bắt cặp hoàn hảo với các dòng con lăn điện một chiều không chổi than (Brushless DC Motor - BLDC) áp thấp chạy tốc độ cao có kích thước thon gọn như dòng PM380LS (đường kính 38mm) hay dòng PM427LS (đường kính 42.7mm). Trong cấu trúc của một hệ thống băng tải tự động hóa thông minh hằng ngày, CBL-402F2 gánh vác trách nhiệm thu nhận các xung tín hiệu điều khiển cơ sở, xử lý thuật toán closed-loop và chỉ huy con lăn đóng cắt hành trình, tăng giảm vận tốc nhịp nhàng. Với khả năng tương thích linh hoạt đa giao thức NPN/PNP và cơ cấu tùy biến tốc độ bằng núm cơ học xoay trực quan, đây là linh kiện nền tảng để xây dựng dải băng tải chia chọn bưu phẩm siêu tốc, line sản xuất dược phẩm phòng sạch đòi hỏi kết cấu sườn máy phẳng mảnh thông qua dải cung ứng của mạng lưới Itoh Denki Vietnam.

CẤU TRÚC ULTRA-COMPACT CHO KHUNG SƯỜN SIÊU MỎNG VÀ KHẢ NĂNG CHUYỂN ĐỔI NPN/PNP LINH HOẠT
- Thiết kế hình thái học siêu mỏng (Ultra-compact Design): Bước đột phá lớn của model CBL-402F2 nằm ở kích thước vật lý được thu chuẩn milimet tối đa. Bo mạch sở hữu bề rộng siêu hẹp, cho phép kỹ thuật viên dễ dàng gá lắp đặt ẩn, lọt lòng hoàn toàn vào bên trong vách sườn của các thanh nhôm định hình (side frame) băng tải có chiều cao cực hẹp, chỉ từ 60mm. Đặc tính hình học này loại bỏ hoàn toàn việc phải làm các hộp tủ điện rườm rà thò ra ngoài vách máy, giúp hệ thống băng tải đạt độ thanh mảnh thẩm mỹ cao, giải phóng không gian nhà xưởng và tối ưu hóa diện tích lắp đặt cho các cụm máy đóng gói gọn nhẹ.
- Công nghệ đa logic giao tiếp (NPN/PNP Selectable): Khác biệt với các dải card điều khiển phổ thông thế hệ cũ thường bị cố định một dòng logic tín hiệu kích (như mã CB-018N2 chỉ thuần hỗ trợ NPN), CBL-402F2 được cấy sẵn mạch đảo cực thông minh. Chỉ bằng một thao tác gạt công tắc DIP Switch đơn giản trên thân board, kỹ thuật viên có thể chuyển đổi linh hoạt giữa hệ tín hiệu kích âm (NPN - Sinking Logic) hoặc kích dương (PNP - Sourcing Logic). Sự đa năng này giúp bo mạch "bắt tay" và tương thích hoàn hảo với mọi hệ thống điều khiển trung tâm sử dụng chuẩn PLC Châu Á (như Mitsubishi, Omron) hay chuẩn PLC Châu Âu (như Siemens, Schneider, Allen-Bradley), đơn giản hóa bản vẽ thiết kế mạch điện.

CẤU HÌNH TỐC ĐỘ 10 CẤP TRỰC QUAN VÀ MẠCH CHẨN ĐOÁN LỖI THÔNG MINH QUA ĐÈN LED
- Tùy biến tốc độ bằng núm xoay cơ học (Rotary Switch Speed Control): Không yêu cầu kỹ sư phải kết nối máy tính, cài đặt phần mềm lập trình hay nạp code phức tạp, CBL-402F2 trang bị một cụm núm vặn xoay định vị (Rotary Switch) đánh ký số trực quan từ 0 đến 9. Kỹ thuật viên bảo trì chỉ cần sử dụng tua-vít nhỏ vặn núm xoay để thiết lập tức thời 1 trong 10 mức cài đặt vận tốc tuyến tính đã được nhà máy định cấu hình sẵn cho động cơ con lăn MDR. Cơ chế này giúp chu trình hiệu chuẩn dải tốc độ băng tải tại thực địa diễn ra chớp nhoáng, chuẩn xác.
- Hệ thống chẩn đoán mã lỗi thông minh (LED Diagnostics): Trên mặt bo mạch tích hợp cụm 2 đèn LED hiển thị trạng thái thời gian thực, bao gồm LED nguồn màu Xanh (PWR) và LED cảnh báo màu Đỏ (ERR). Khi hệ thống mạch động lực phát sinh sự cố, đèn LED đỏ sẽ chủ động nhấp nháy theo dải tần số xung chớp (flash codes) khác nhau để báo cáo chính xác "bệnh lý" nội tại của hệ thống: lỗi kẹt cứng cơ khí con lăn (lock error), lỗi mạch quá nhiệt (thermal error), sự cố sụt giảm điện áp nguồn (low voltage), hoặc đứt mạch cáp động cơ. Tính năng này giúp kỹ sư định vị nhanh vị trí lỗi, rút ngắn thời gian dừng máy bảo trì xuống mức thấp nhất.

KẾT NỐI D-SHAPE CHỐNG CẮM NGƯỢC VÀ CÁC CHẾ ĐỘ BẢO VỆ CỐT LÕI
- Chuẩn kết nối giắc hình chữ D an toàn: Card điều khiển CBL-402F2 thiết lập cổng kết nối động cơ tương thích tuyệt đối với các dòng con lăn Itoh Denki trang bị cáp nối có đuôi mã -DR hoặc giắc cắm chuẩn 6-pin hình chữ D (D-shaped connector). Biên dạng giắc cắm cơ học này sở hữu ngàm khóa "chống cắm ngược" thông minh, ngăn chặn 100% tình trạng cắm sai chiều, lệch pha pha điện từ động lực gây rủi ro chập cháy vi mạch hoặc hỏng cuộn dây động cơ.
- Mạch vòng đóng ngắt khép kín an toàn: Bo mạch tích hợp sẵn cầu chì bảo vệ quá dòng dải 5A cao cấp và cảm biến nhiệt độ phần cứng bảo vệ kép (Thermal Overload Protection). Hệ thống logic tự động ngắt điện áp động lực tức thời khi ghi nhận nhiệt độ mạch bo vượt ngưỡng 95°C hoặc nhiệt độ nội tại cuộn dây động cơ vượt mốc 110°C, bảo vệ tuổi thọ linh kiện trường kỳ. Khi phối ghép cùng cảm biến quang, bo mạch vận hành hoàn hảo ở chế độ phân vùng tích lũy không áp lực (ZPA) theo cơ chế chạy theo nhu cầu (Run-on-demand), tự động ngắt dừng con lăn khi phân khu phía trước bị nghẽn hàng, giúp cắt giảm 70% lượng điện năng hao phí hằng ngày.

ITOH DENKI CBL-402F2 MULTI-LOGIC ULTRA-COMPACT MOTORIZED DRIVEN ROLLER (MDR) DRIVER CARD

DEEP PRODUCT OVERVIEW & SLIM-FRAME HEAVY AUTOMATION INFRASTRUCTURE
The Itoh Denki CBL-402F2 is a premium, high-tech industrial centralized digital controller board (MDR Driver Card / Control Board) characterized by its specialized ultra-compact structural form factor, developed and manufactured 100% in Japan by the global material handling automation pioneer Itoh Denki. Standing as the definitive optimized engineering upgrade from the classic CBL-402F series, this advanced hardware functions as the centralized local "brain" meticulously programmed to pair flawlessly with high-velocity, low-voltage Brushless DC (BLDC) motorized tubes featuring slim profiles—specifically the high-speed sprint PM380LS series (38mm diameter) and the balanced travel PM427LS series (42.7mm diameter). Within modern automated material handling system fabrics, the CBL-402F2 commands the absolute responsibility of processing incoming process inputs, executing localized closed-loop control scripts, and discharging dynamic output current to govern smooth roller acceleration, deceleration, and braking cycles. Housing a selectable NPN/PNP logic protocol chip alongside an onboard manual rotary velocity dial, this component serves as an irreplaceable modular block to deploy express parcel sortation networks and cleanroom pharmaceutical packaging tracks enforcing thin-chassis beam constraints supported via certified Itoh Denki Vietnam logistics distributions.

ULTRA-COMPACT SHAPE FOR SLIM SIDE-FRAME BEAMS & FLEXIBLE MULTI-LOGIC SELECTABILITY
- Mechanical Ultra-Compact Engineering Geometry (Ultra-compact Design): The primary physical asset of the CBL-402F2 model is its drastically compressed width scale, precision-milled down to millimetric limits. This slim mechanical profile enables automation field technicians to install and bury the control board completely flush inside the internal cavity of aluminum conveyor side rails (side frames) tracking tight vertical clearances down to a miniscule 60mm. This spatial integration entirely eradicates the requirement for bulky external sub-panels or sub-enclosures projecting awkwardly outward from the machine frame, securing a beautifully streamlined, low-profile conveyor blueprint that reclaims facility floor space and simplifies packing machine clustering.
- Selectable Dual-Track Logic Signaling Topology (NPN/PNP Selectable): Shifting far away from baseline legacy driver cards that are hardwired to support only a frozen single logic signaling standard (such as the CB-018N2 module which natively tracks sinking logic only), the CBL-402F2 embeds an advanced automated polarity-reversal logic bridge. By simply adjusting a physical onboard DIP switch setting on the board substrate, field operators can seamlessly toggle between negative sinking control logic (NPN - 0V reference) and positive sourcing control logic (PNP - +24V reference). This high versatility ensures the card interfaces flawlessly with both Asian-market standardized PLC industrial racks (e.g., Mitsubishi, Omron) and European/Western automation architectures (e.g., Siemens, Schneider, Allen-Bradley), drastically reducing system control wiring diagram overheads.

10-STEP ROTARY SPEED TUNING & INTELLIGENT COMPONENT-LEVEL LED FAULT DIAGNOSTICS
- Field-Ready Mechanical Speed Profiling (Rotary Switch Control): Bypassing the requirement for external laptops, complex software configuration licensing, or manual firmware code uploading loops for baseline speed commissioning, the CBL-402F2 incorporates a physical onboard indexed Rotary Switch dial marked from 0 to 9. Maintenance crews can easily toggle this mechanical switch using a small screwdriver to instantly select 1 of 10 pre-loaded linear velocity steps configured at the factory for the paired MDR tube. This manual interaction allows rapid line balancing adjustments directly on the active processing floor.
- Intelligent Error-Coded Status Feedback (LED Diagnostics): The faceplate features a synchronized dual LED operational tracking array: a Green power indicator LED (PWR) paired with a Red system fault alert LED (ERR). The moment an operational anomaly compromises active line performance, the integrated microprocessor forces the Red LED to flash in distinct rhythmic frequency pulse patterns (flash codes) to explicitly diagnose system errors: mechanical tube lock conditions (lock error), system board overheating (thermal error), low-voltage power rail dropouts (low voltage), or broken motor cable phases. This precise diagnostics system empowers technicians to pinpoint the exact root failure cause rapidly, driving down unscheduled downtime intervals to absolute minimum metrics.

ANTI-REVERSE D-SHAPE PLUG HARDWARE SAFETY BLOCKS & TIRED SYSTEM PROTECTION CIRCUITS
- Fail-Safe Mechanical D-Shape Interconnect: The integrated motor receptacle port conforms to a standardized 6-pin D-shaped connector geometry, matching Itoh Denki motorized tubes finished with -DR quick-connect harness suffixes. This physical alignment features an anti-reverse orientation keyway lock, completely rendering reverse-polarity phase wiring faults impossible, thereby safeguarding internal processing chipsets from terminal voltage shorts and shielding motor copper stators from winding failures during fast hot-swaps.
- Multi-Tier Autonomous Protection Overrides: The hardware chassis embeds an industrial-grade 5A overcurrent short-circuit fuse paired with a dual-zone technical hardware thermal sensor array (Thermal Overload Protection). The logic circuit executes instantaneous output power rail isolation whenever the onboard controller temperature breaks past 95°C or the internal motor coil thermal threshold breaches 110°C, extending product lifecycle metrics across severe manufacturing shifts. When synchronized alongside localized photoelectric line sensors, the driver board operates seamlessly on a dynamic run-on-demand cycle inside high-efficiency Zero Pressure Accumulation (ZPA) topologies—idling the localized conveyor segment immediately when downstream package pile-ups occur to eliminate cargo crushing defects while cutting overarching facility power grid electrical consumption metrics by up to 70%.
