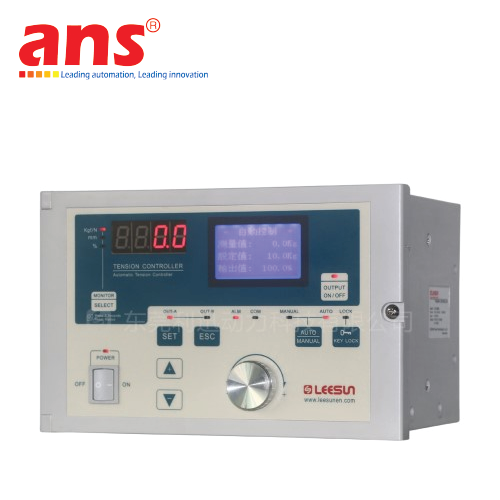

Bộ điều khiển lực căng tự động LTC858A LEESUN Vietnam

Ltc-858a tension controller is a high-precision, multi-functional full digital intelligent tension controller, which forms a closed-loop tension control system with tension detector. After receiving the signal transmitted by the LS series tension detector, after the internal intelligent PID operation is processed, the actuator is adjusted to automatically control the unwinding and the middle of the long size material.

Tension of guide and winding.

The ltc-858a tension controller adopts a brand-new graphic LCD display, with clearer display in Chinese and English. It sends a control voltage command of 0 ~ 24VDC for the magnetic particle clutch / brake, and can also output a voltage signal of 0 ~ 10V to control the frequency converter, servo motor or other actuators to carry out high-precision tension control on the coil. Can be widely applied

Used in printing, packaging, papermaking, cable, rubber and plastic, electronic battery, textile printing and dyeing and other industries.

Functional features:

1. Graphic LCD 128 × 96, Chinese and English display, simple programming, convenient and clear.

2. Multi function control: automatic tension control and taper tension control function.

3. High precision D / a converter is adopted, the output accuracy is up to 0.1%, and the tension control is more accurate.

4. It can directly drive magnetic particle clutch / brake, and also control frequency converter, servo motor, etc.

5. It can accept single or dual sensor input signals for automatic zero adjustment and automatic calibration.

6. Optional serial communication function, RS485 communication interface.

7. It has dual axis switching and acceleration and deceleration control functions.

8. There is a password function inside, which can avoid misoperation and change the set parameters.

9. With storage box, various parameters can be backed up.

10. Humanized interface design, easy to operate.
